Equipment catalogue

Ground penetrating radar, pipeline & cable locators and coating fault detectors — engineered and manufactured in Tianjin, shipped worldwide with English documentation and remote commissioning support.

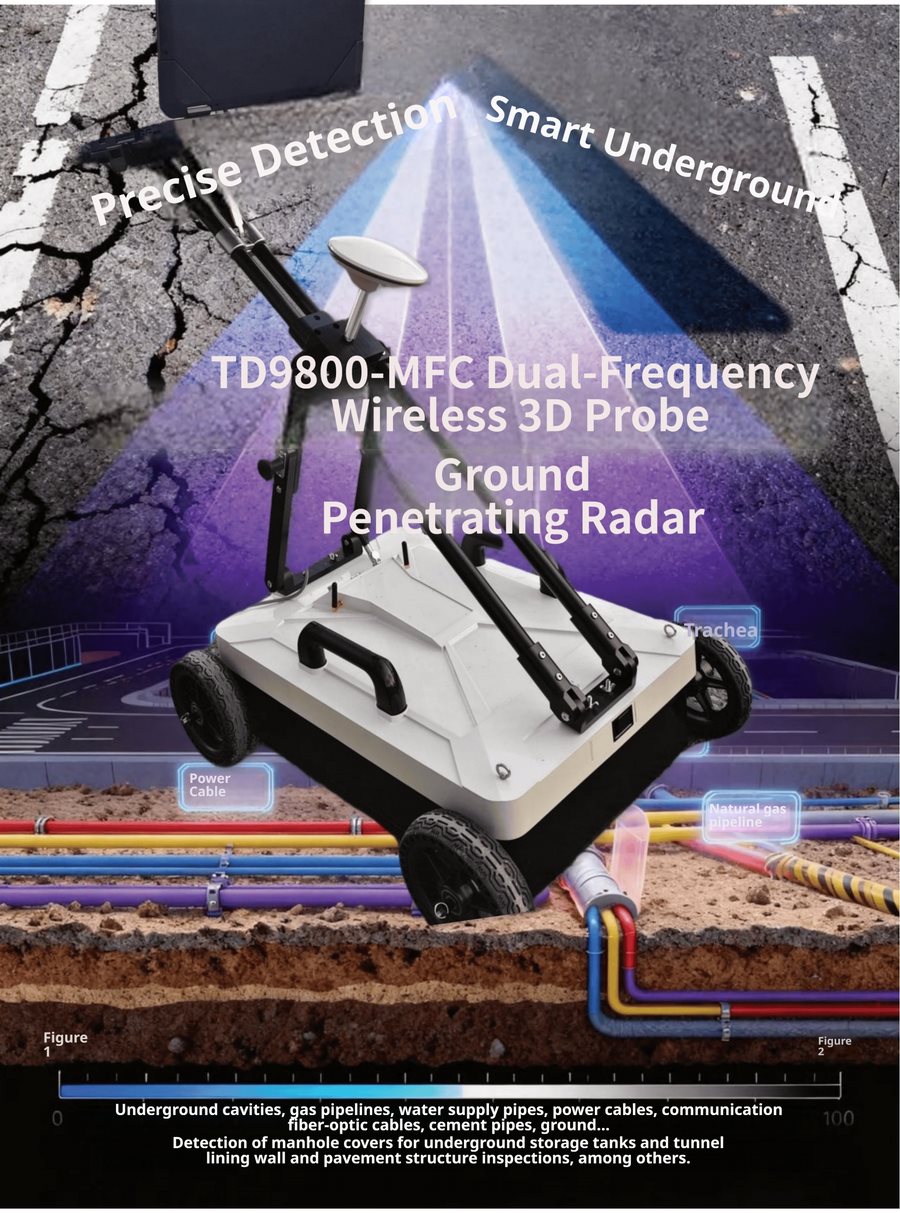

TD9800-MFC dual-frequency wireless ground penetrating radar
Ground Penetrating Radar · Flagship

TD9800-MFC Dual-Frequency Wireless GPR

Two antenna centre frequencies are integrated into a single probe: a high band (400 / 600 / 750 / 900 MHz) and a low band (100 / 200 / 250 MHz). One scan captures shallow small-diameter services and deep large-diameter mains at the same time, and comparing the two bands' data significantly raises pipeline identification confidence.

  • Dual-frequency composite technology in one probe
  • High band 400–900 MHz + low band 100–250 MHz in a single scan
  • Greater effective frequency coverage — depth and resolution in one pass
  • Cross-band data comparison raises identification rate
High band 400–900 MHzLow band 100–250 MHzOne-pass dual depthWireless
Request a QuoteTechnical Datasheet

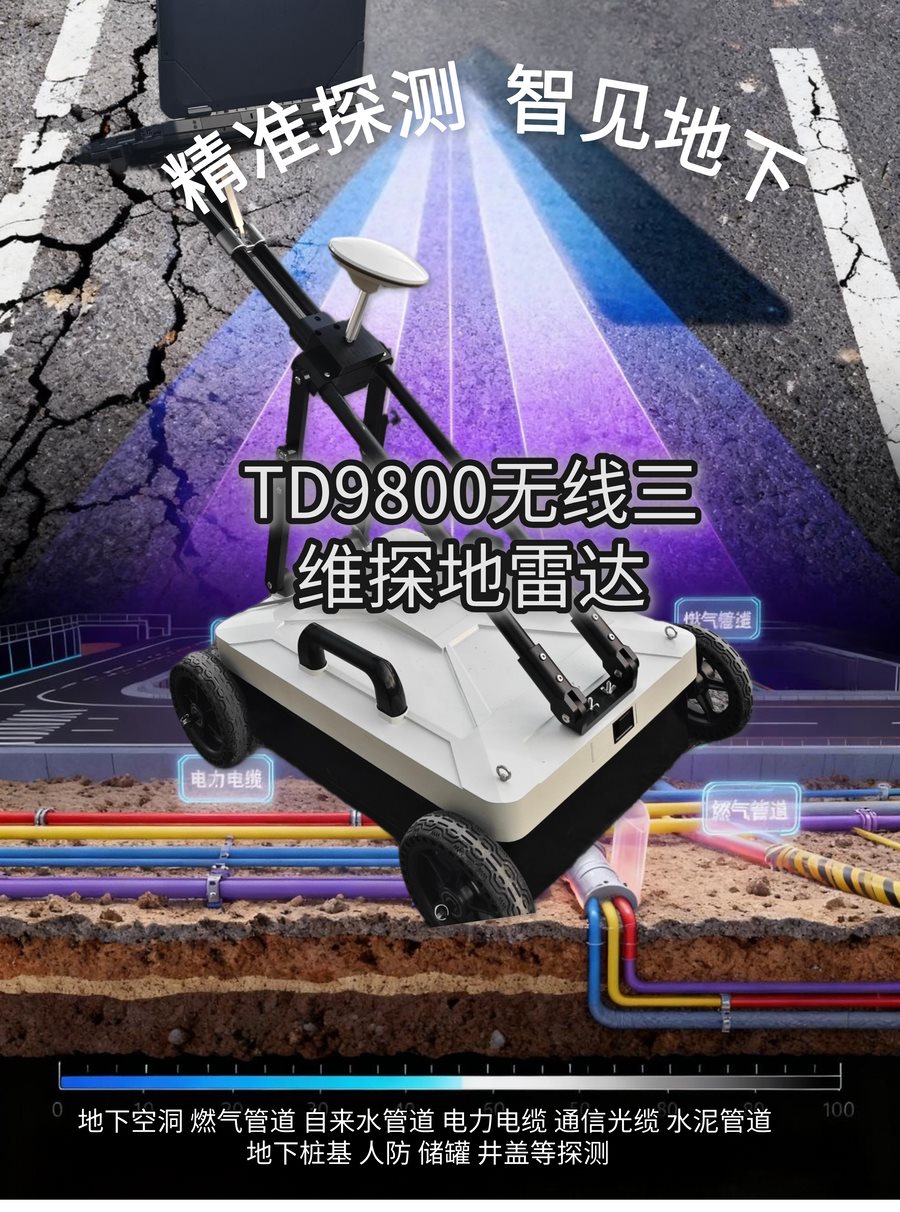

TD9800 wireless 3D ground penetrating radar
Ground Penetrating Radar

TD9800 Wireless 3D GPR (200 MHz)

A mid-frequency wireless GPR on the 200 MHz band, balancing resolution and penetration. Built for municipal engineering, road void detection, metallic and non-metallic pipeline detection, archaeological investigation and concrete structure inspection.

  • 200 MHz band — the balance point between resolution and depth
  • Detects metallic and non-metallic buried utilities
  • Road void detection and concrete structure inspection
  • 3D subsurface imaging for engineering decisions
200 MHz3D imagingVoid detectionMunicipal
Request a QuoteTechnical Datasheet

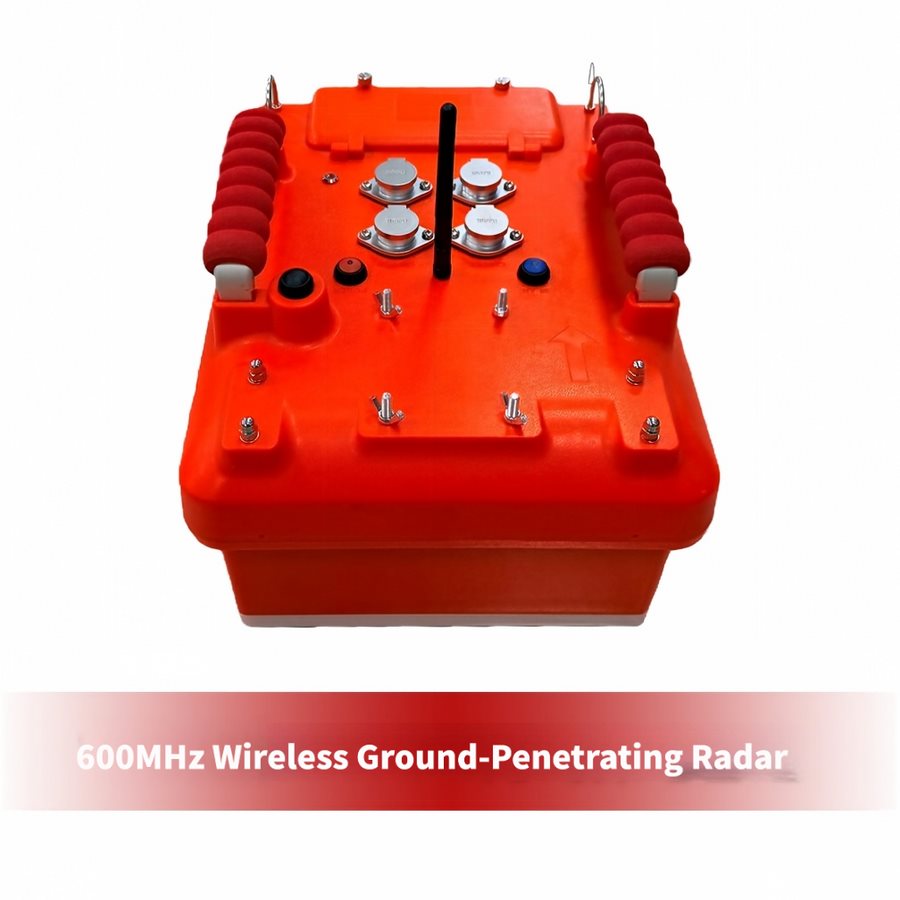

TD9800-600/900 MHz wireless ground penetrating radar
Ground Penetrating Radar

TD9800-600/900 MHz Wireless GPR

Built around a high-speed pulse generator and picosecond sampling with a fully software-controlled digital design. The TD9800 platform is a true wireless GPR system — any WLAN laptop or tablet becomes the display, processing and storage unit. Antenna and console are genuinely integrated, and one-key smart gain keeps operation simple.

  • High-speed pulse generator with picosecond sampling
  • True wireless data transfer over standard IEEE 802.11
  • Integrated antenna + console design
  • One-key smart gain and software-adjustable sampling
600 / 900 MHzWi-Fi transferTablet control
Request a QuoteTechnical Datasheet

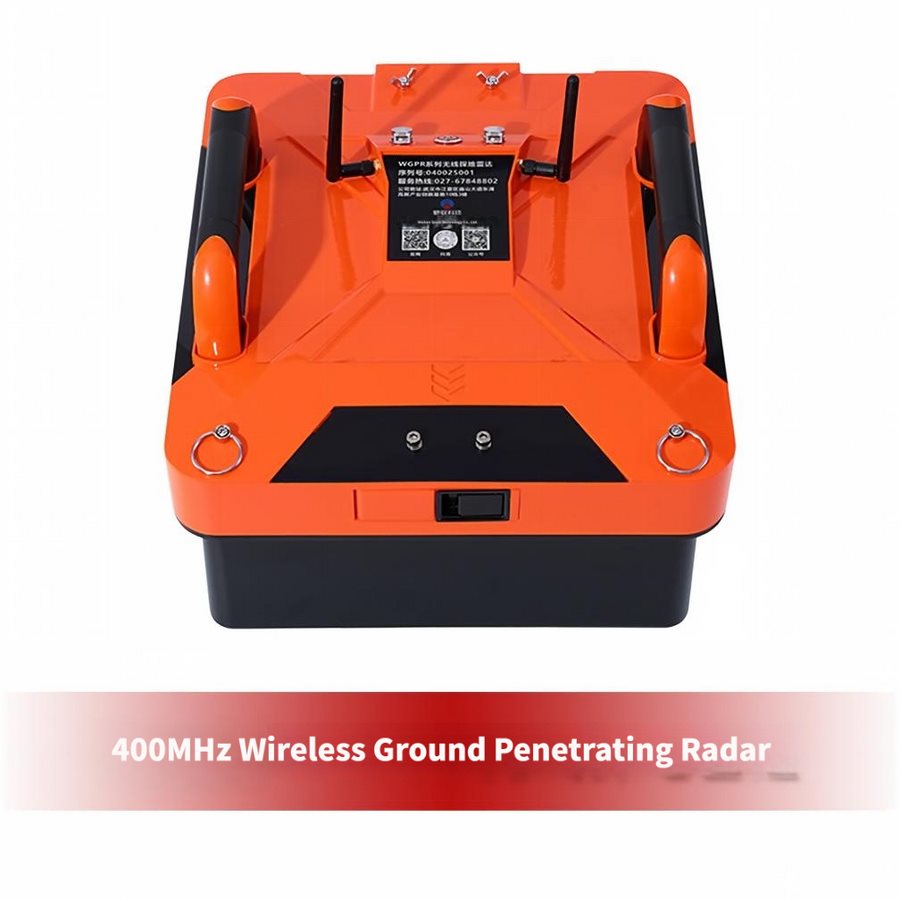

TD9800-400 MHz wireless ground penetrating radar
Ground Penetrating Radar

TD9800-400 MHz Wireless GPR

Configured for gas PE pipes, sewers, water mains and heating pipe detection, plus void detection and concrete bridge / lining defect inspection. Also suited to geotechnical, mineral, geological and hydrological survey, dam hazard detection and archaeology. Continuous non-destructive scanning with high precision and easy interpretation.

  • Gas PE pipe, sewer, water and heating pipe detection
  • Void detection and concrete / lining defect inspection
  • Antenna-array technology for higher result validity
  • Advanced filtering and de-noising for clear images
400 MHzVoid detectionNon-metal pipes
Request a QuoteTechnical Datasheet

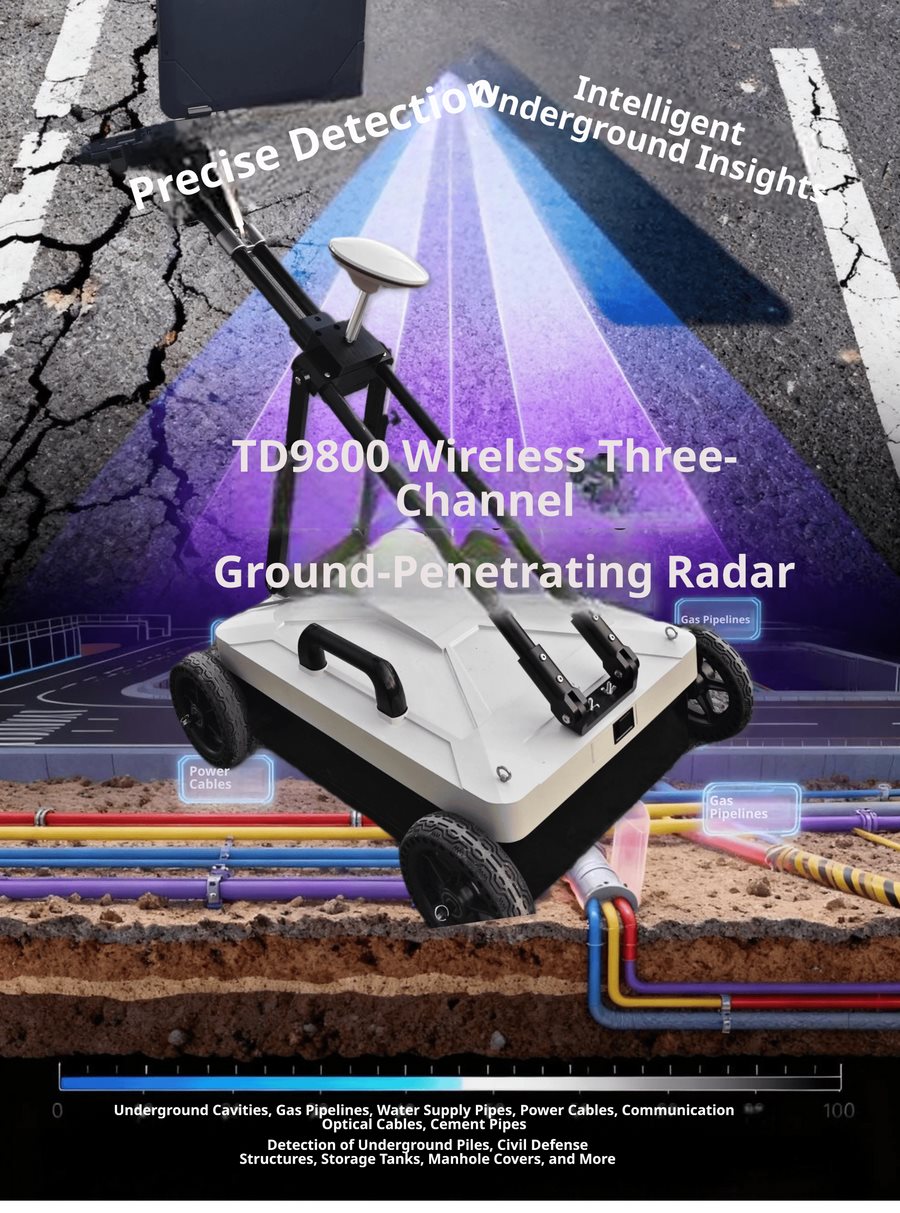

TD9800-200 wireless ground penetrating radar
Ground Penetrating Radar

TD9800-200 Wireless GPR

A professional imaging radar using high-frequency electromagnetic waves. The wireless design lets operators monitor data in real time from a distance, improving survey efficiency and safety — ideal for geological investigation, pipeline locating, road inspection and concrete defect checking.

  • High-resolution electromagnetic imaging
  • Wireless transmission with real-time remote monitoring
  • Road, pavement and concrete inspection
  • Portable, fast to deploy on any site
200 MHzWirelessImaging
Request a QuoteTechnical Datasheet

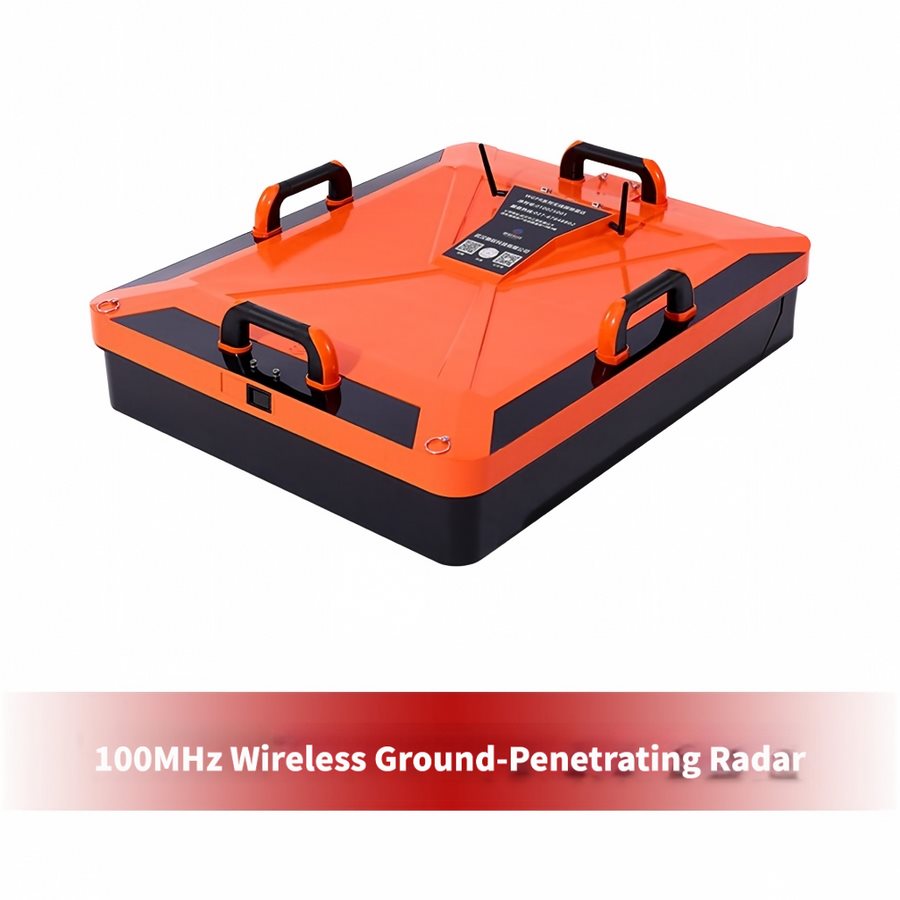

TD9800-100 MHz wireless ground penetrating radar
Ground Penetrating Radar · Deep penetration

TD9800-100 MHz Wireless GPR

A 100 MHz centre-frequency radar designed for deep subsurface structures: pipelines, cables, voids and strata interfaces — with detection depth beyond 15 m. Especially valuable for tunnel advance prediction, and a dependable tool for geological engineering, municipal construction and archaeological research. For municipal work we recommend pairing the 100 MHz with a 400 MHz (or 200 MHz) antenna — any dual-frequency combination can be configured on request.

  • 100 MHz band for maximum penetration
  • Detection depth beyond 15 m
  • Tunnel advance (geological) prediction
  • Configurable dual-frequency antenna combinations (e.g. 100 + 400 MHz)
100 MHzDepth 15 m+Tunnel prediction
Request a QuoteTechnical Datasheet

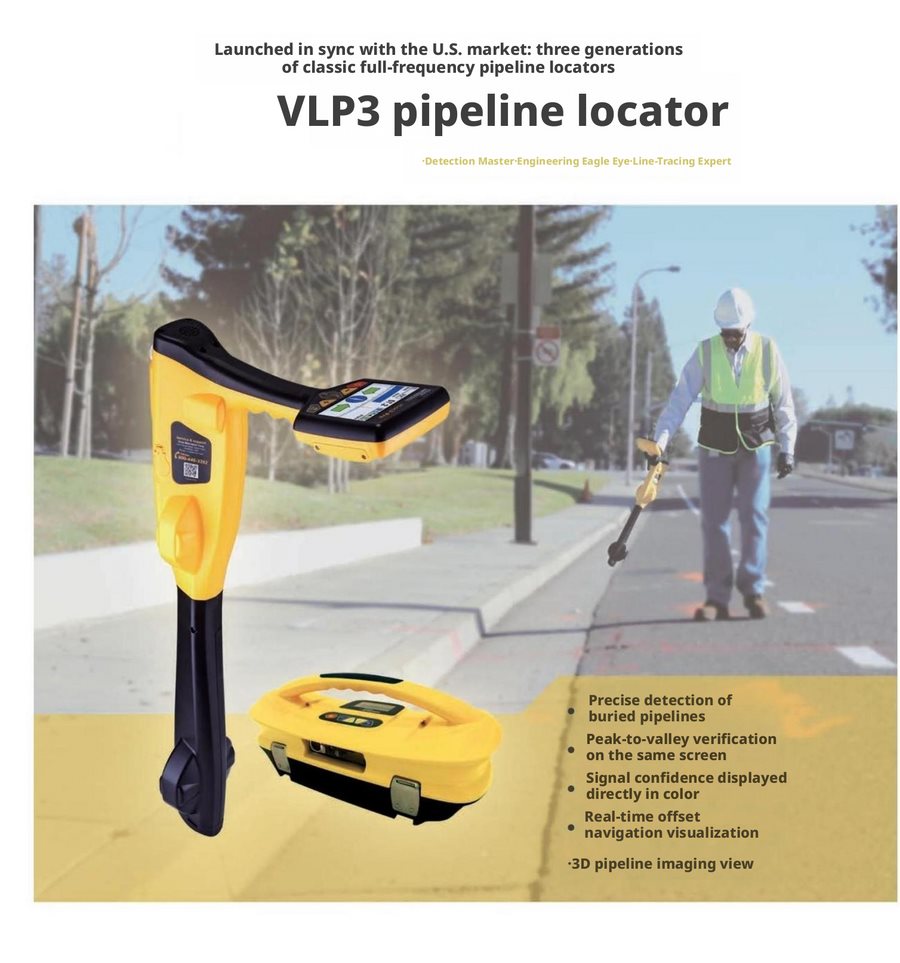

vLoc3-Pro underground pipeline and cable locator
Pipeline & Cable Locator

vLoc3-Pro Pipeline & Cable Locator

A professional locator using advanced electromagnetic induction to pinpoint and trace buried cables, pipes and fibre — even in complex ground conditions. A high-sensitivity sensor, clear digital display and intuitive signal guidance keep crews fast and confident; the waterproof, dustproof housing holds up in harsh field work.

  • Electromagnetic induction locating of cables, pipes and fibre
  • High-sensitivity receiver for congested urban ground
  • Clear digital display with intuitive signal indication
  • Waterproof and dustproof for long-term outdoor use
EM inductionDigital displayRugged
Request a QuoteTechnical Datasheet

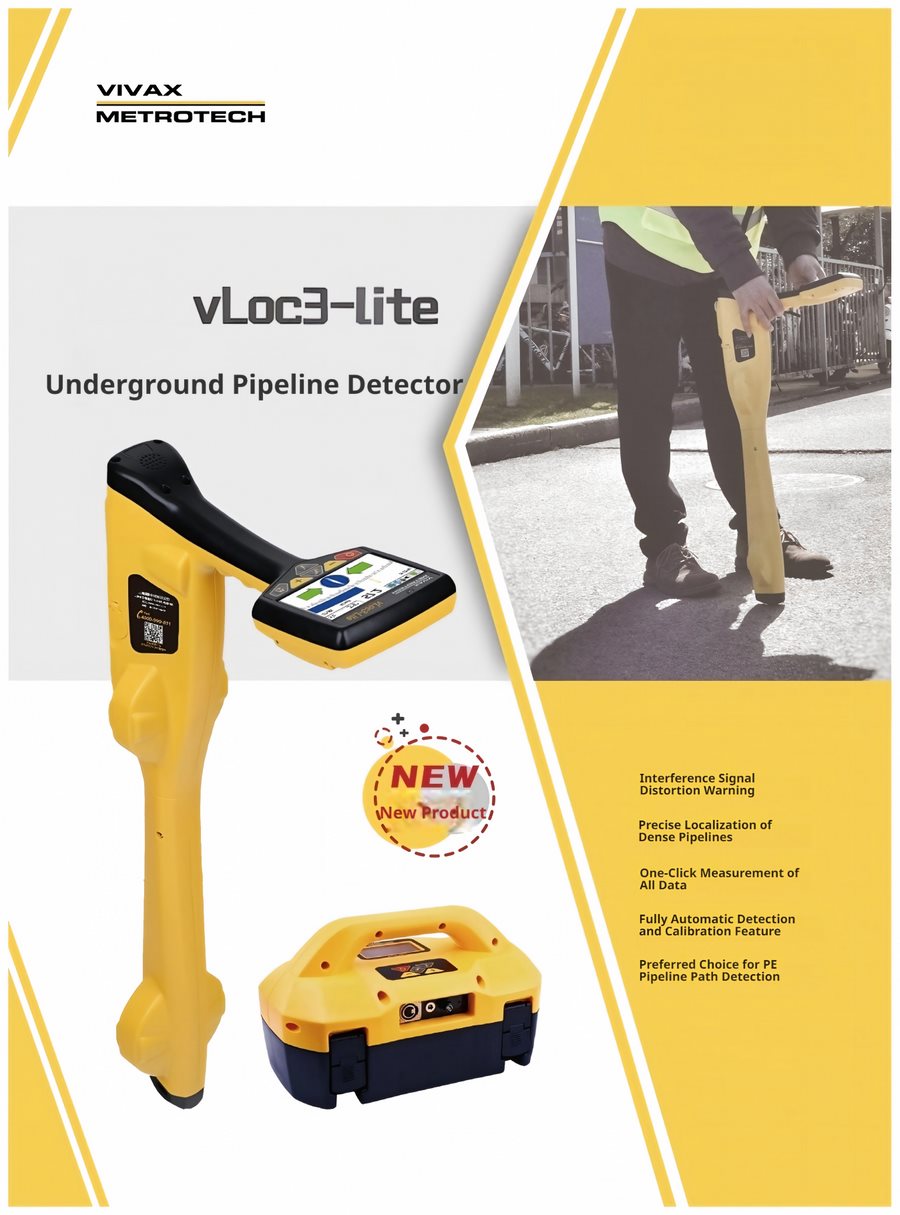

vLoc3-Lite underground pipeline locator
Pipeline & Cable Locator

vLoc3-Lite Pipeline & Cable Locator

Developed by the international R&D team of the Vivax-Metrotech group to locate buried utilities with confidence. Twin shielded 3D antenna arrays measure accurately even in distorted signal areas, integrating surveying and geophysics in one workflow with automatic data transfer. Strong anti-interference performance, precise positioning and large detection depth — suited to trenchless works, telecom, surveying and rail applications.

  • Dual shielded 3D antenna arrays
  • Accurate measurement in distorted signal areas
  • Integrated mapping and geophysical survey workflow
  • Automatic detection data transfer and logging
3D antennaAnti-interferenceRail / HDD
Request a QuoteTechnical Datasheet

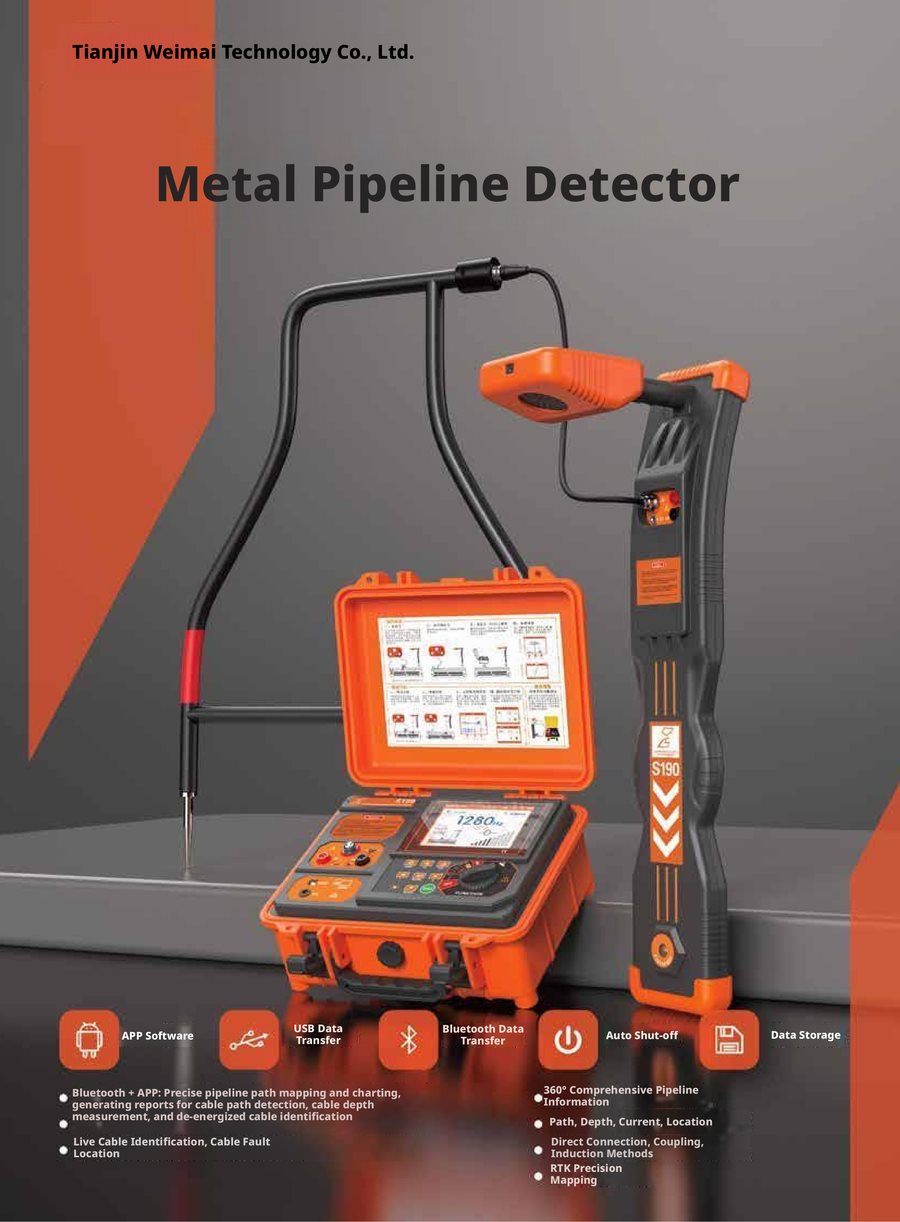

S190 underground pipeline locator
Pipeline & Cable Locator

S190 Pipeline & Cable Locator

A professional-grade underground pipeline locator using advanced geophysical detection to precisely locate and trace buried utilities. High-sensitivity detection identifies metallic pipes, cables and other lines; a portable interface supports real-time data display and recording, and the waterproof, dustproof design stays reliable on demanding sites. A practical choice for survey contractors, engineering firms and utility departments.

  • Precise locating and tracing of metallic pipes and cables
  • High-sensitivity multi-utility detection
  • Real-time data display and recording
  • Waterproof and dustproof field construction
Multi-utilityData loggingRugged
Request a QuoteTechnical Datasheet
vLoc3-DM buried pipeline coating fault detector
Coating Condition Assessment

vLoc3-DM Coating Fault Detector

A high-precision coating integrity detector engineered for the petroleum and petrochemical industries. ACVG and DCVG measurement technology quickly and accurately identifies coating defects, breaks and insulation failures on buried pipelines. High-sensitivity sensors and intelligent data processing support real-time display and recording — built for pipeline integrity assessment, coating maintenance and hazard screening in complex terrain.

  • ACVG + DCVG dual-technology coating surveys
  • Rapid identification of coating defects and insulation failures
  • High-sensitivity sensing with intelligent data processing
  • Real-time fault display and recording in the field
ACVG · DCVGOil & gasPortable
Request a QuoteTechnical Datasheet
Pipeline coating survey in the field
Complementary capability

Leak detection & inspection services equipment

Alongside our own product line we supply and support complementary instruments for water leak detection, deep-buried pipeline location and CCTV pipe inspection — configured and supported by the same engineering team.

  • Water leak detection and correlator instruments
  • Deep-buried pipeline locators for long-distance trunk mains
  • CCTV and pipe inspection crawlers for in-pipe condition assessment
Ask about availability
Not sure which model?

Send us the site conditions. We will recommend the instrument.

Target type and diameter, expected depth, soil conditions, access constraints — four details are usually enough for our engineers to spec the right configuration.
